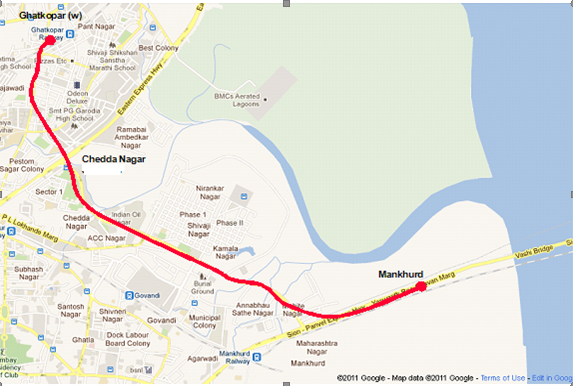

DPR for Mumbai Metro Lines
Mumbai

DPR for Mumbai Metro Lines

Survey & Alignment
Design for Mumbai Metro Line 1

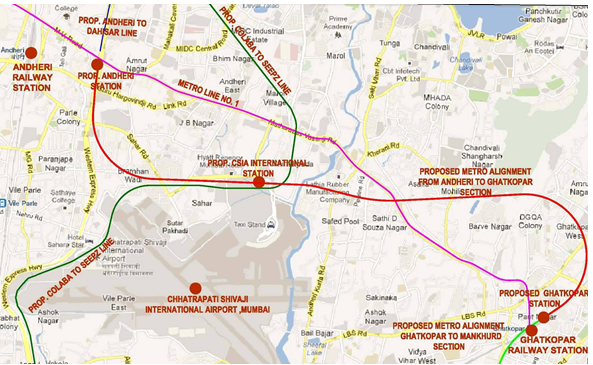

Survey & Alignment Design for Mumbai Metro Line 1

Topographic Survey Report for Andheri-Ghatkopar Metro Section -

Client - Client MMRDA

Main Consultant - SNV Lavalin.

Railway Line for Dighi Port
Raigad

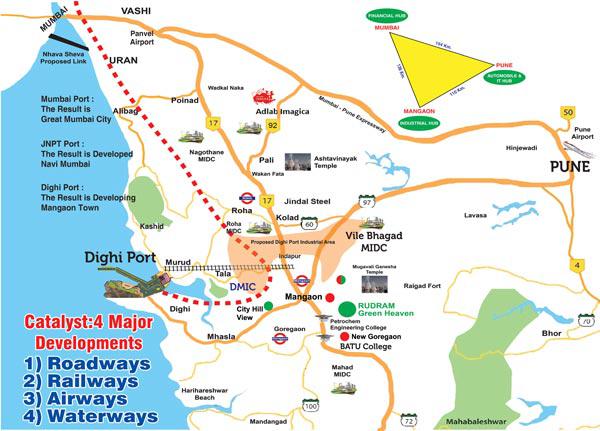

Railway Line for Dighi Port Raigad

Final location surveys for the proposal Dighi Port were undertaken by the consultants with Railway approved consultants. The assignment included undertaking the feasibility of railway alignment with two three alternative alignments starting from Roha, Mangaon and Indapur railway stations on Konkan Railway. After studying the pros and cons of various alignments, it was decided to undertake the final location surveys from Indapur railway station. The alignment was passing entirely passing through the hilly and rolling terrain of Konkan region. Optimum alignment was designed which included major bridges, tunnels, developing yards etc.

Traffic Management and Diversion
Plan for Mumbai Metro line

Traffic Management and Diversion Plan for Mumbai Metro line

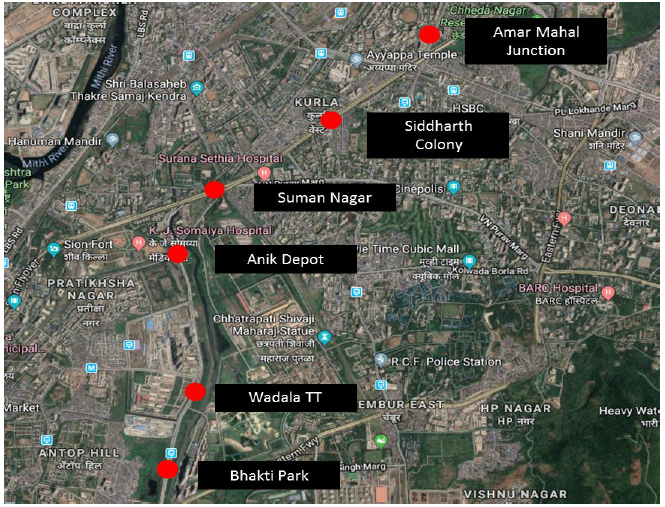

Traffic Management and Diversion plan for Mumbai Metro line - Amar Mahal to Bhakti Park.

DPR of Andheri to Dahisar Metro
line

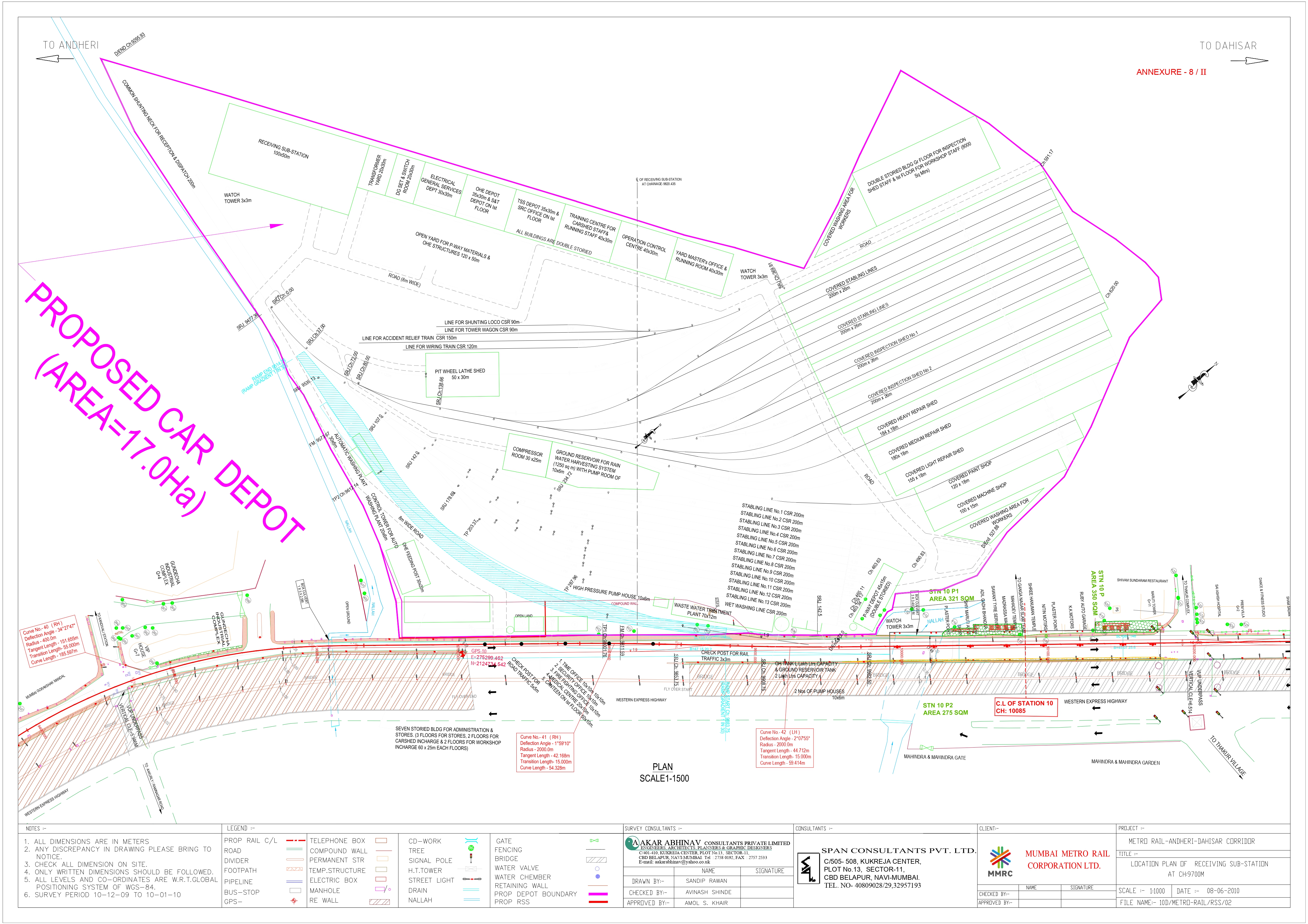

DPR of Andheri to Dahisar Metro line

Planning, Design & PMC for Station
Area Traffic Improvement
Scheme of Badlapur, Mumbai

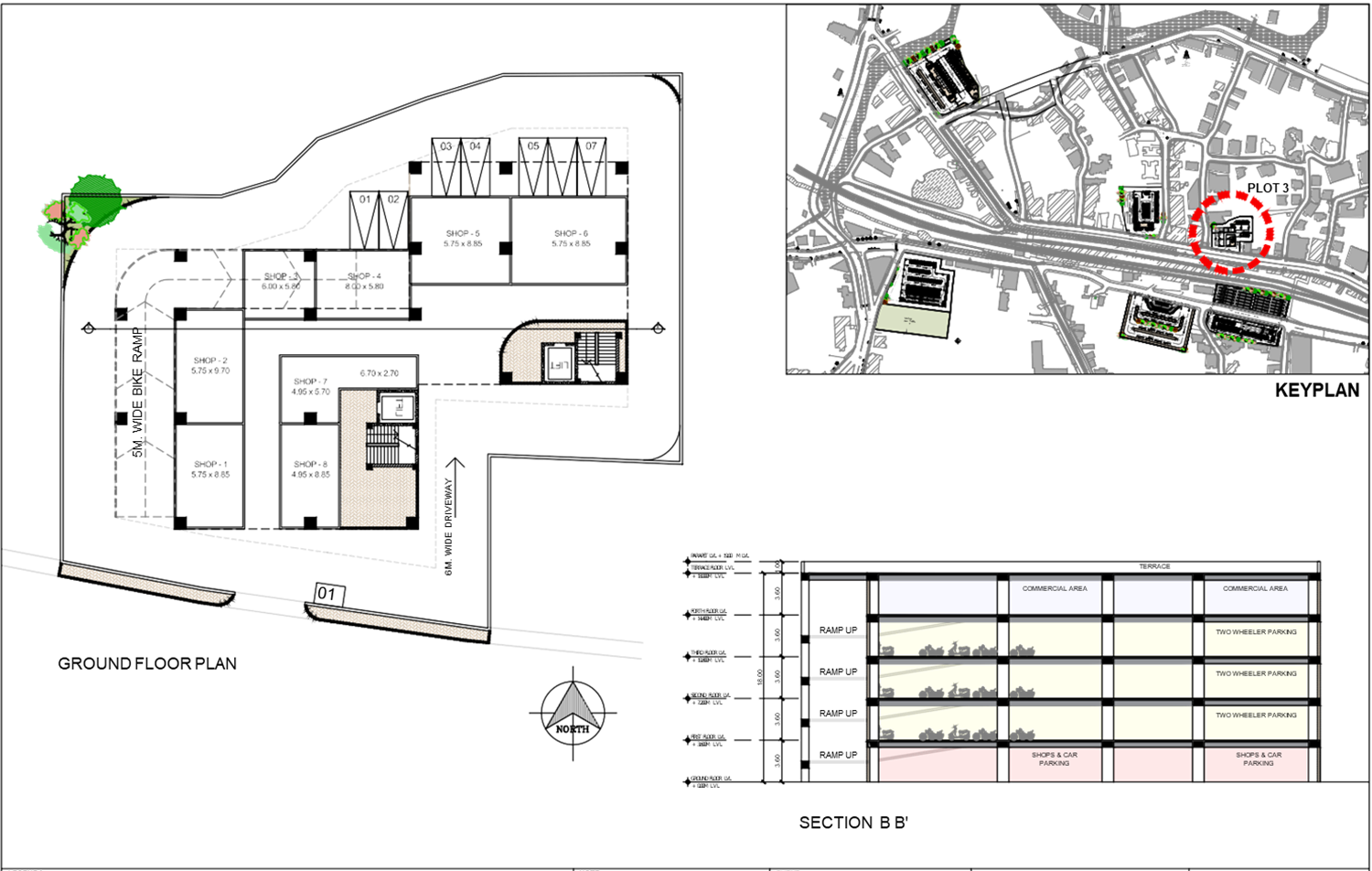

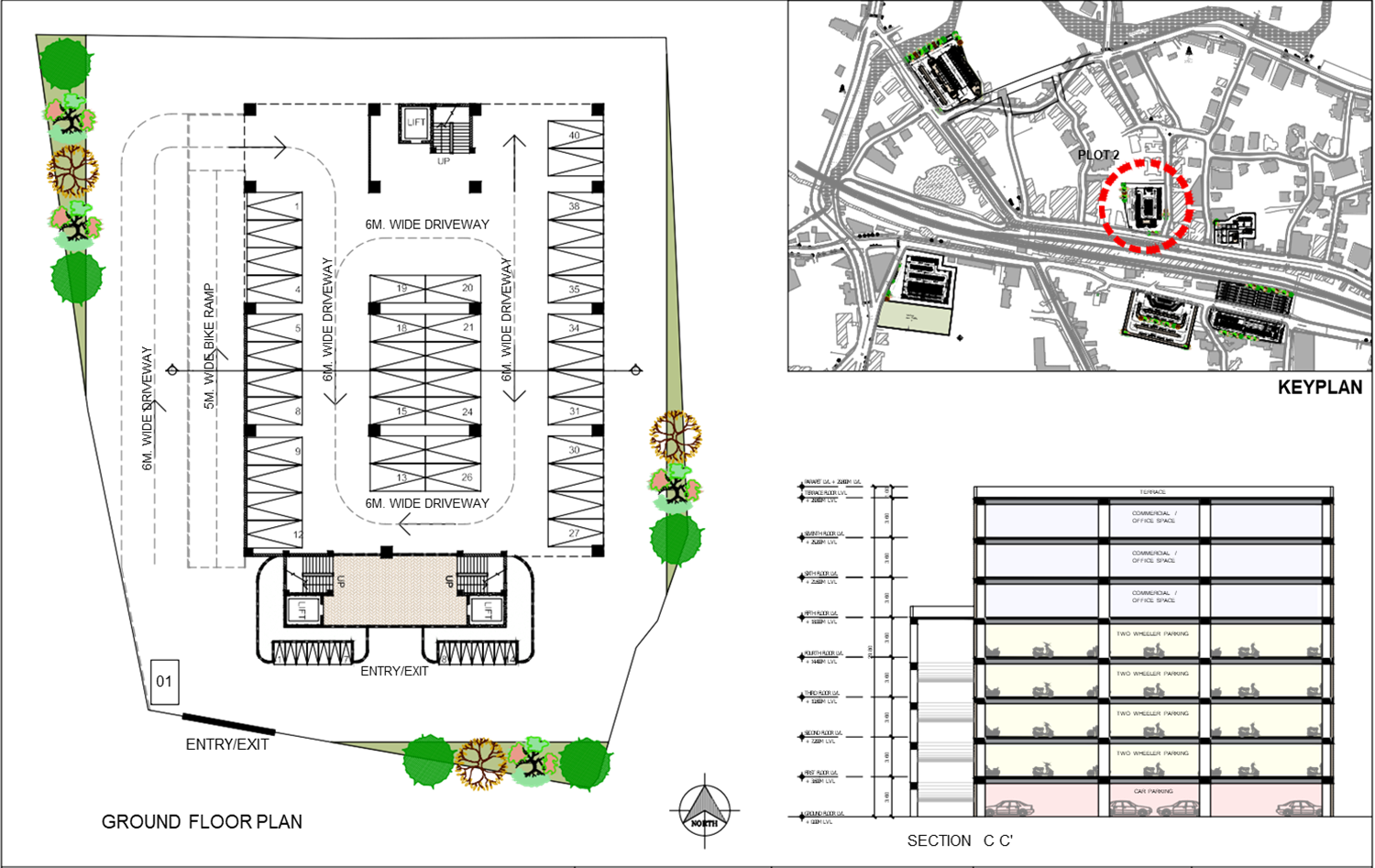

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Client - Mumbai Metropolitan Region Development Authority

Scope of Work -

Delineation of influence area, preparation of station area traffic, commuter dispersal plan, feeder system network plan along with preliminary surveys, design & architectural plans for Multi Level Car Parking (MLCP), block cost estimation, revenue generation, financial feasibility and project approval from various stake holders like ULB’s, Railways, MMRDA etc.

Total Area - 36 Sq. Km.

Project Status - Completed

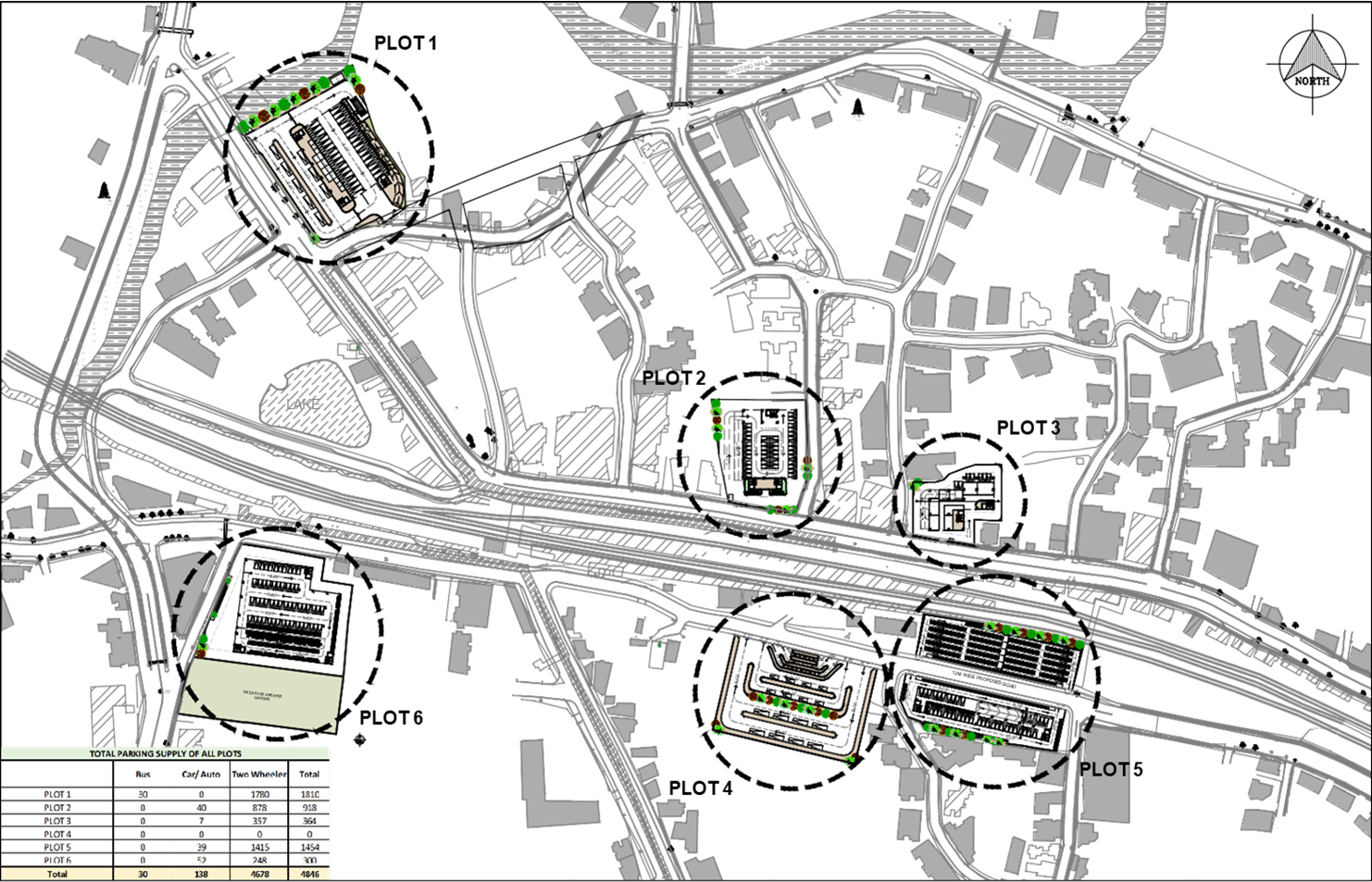

MASTER PLAN

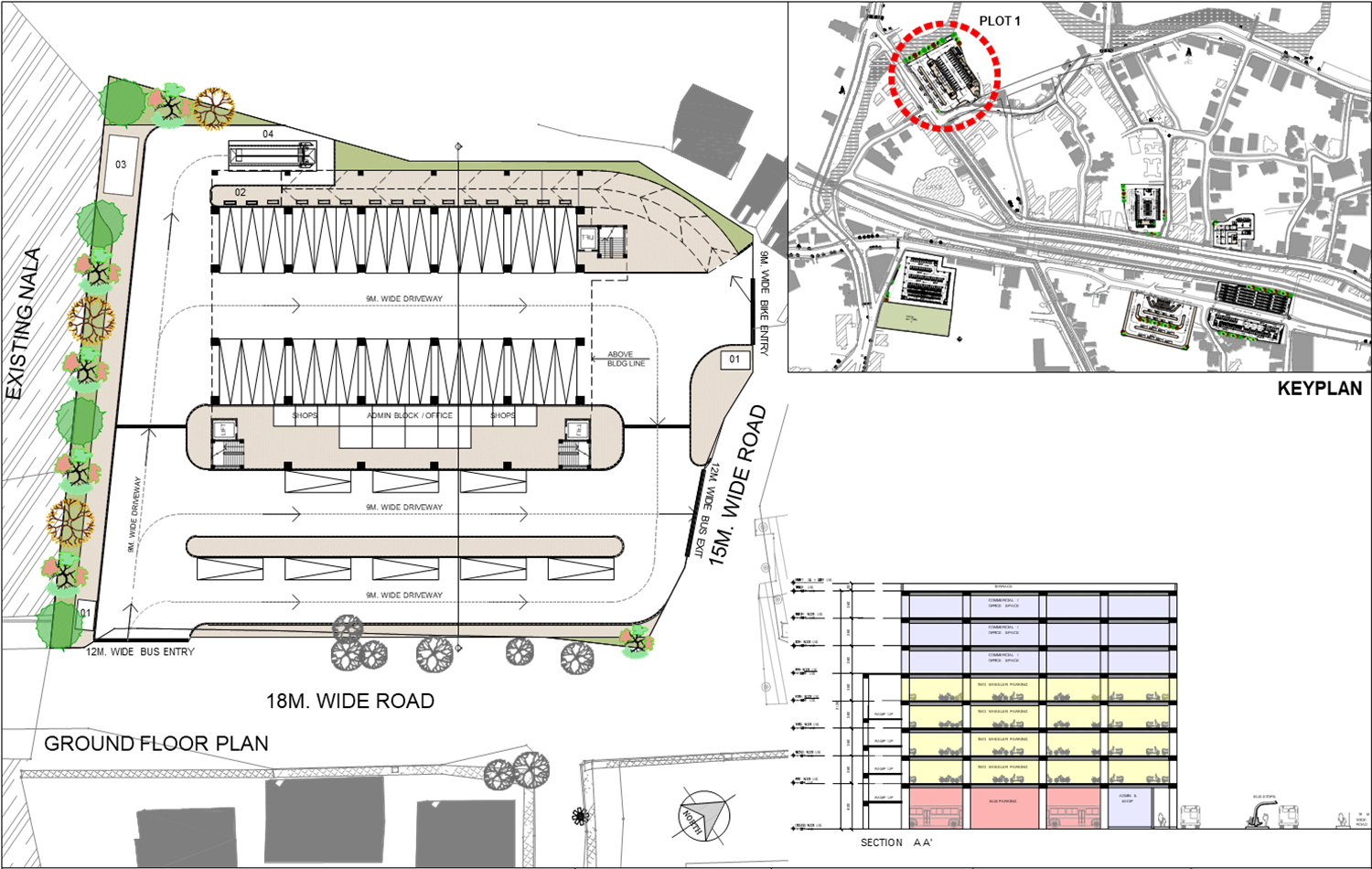

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Plot No.1

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Plot No.2

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Plot No.3

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Plot No.4

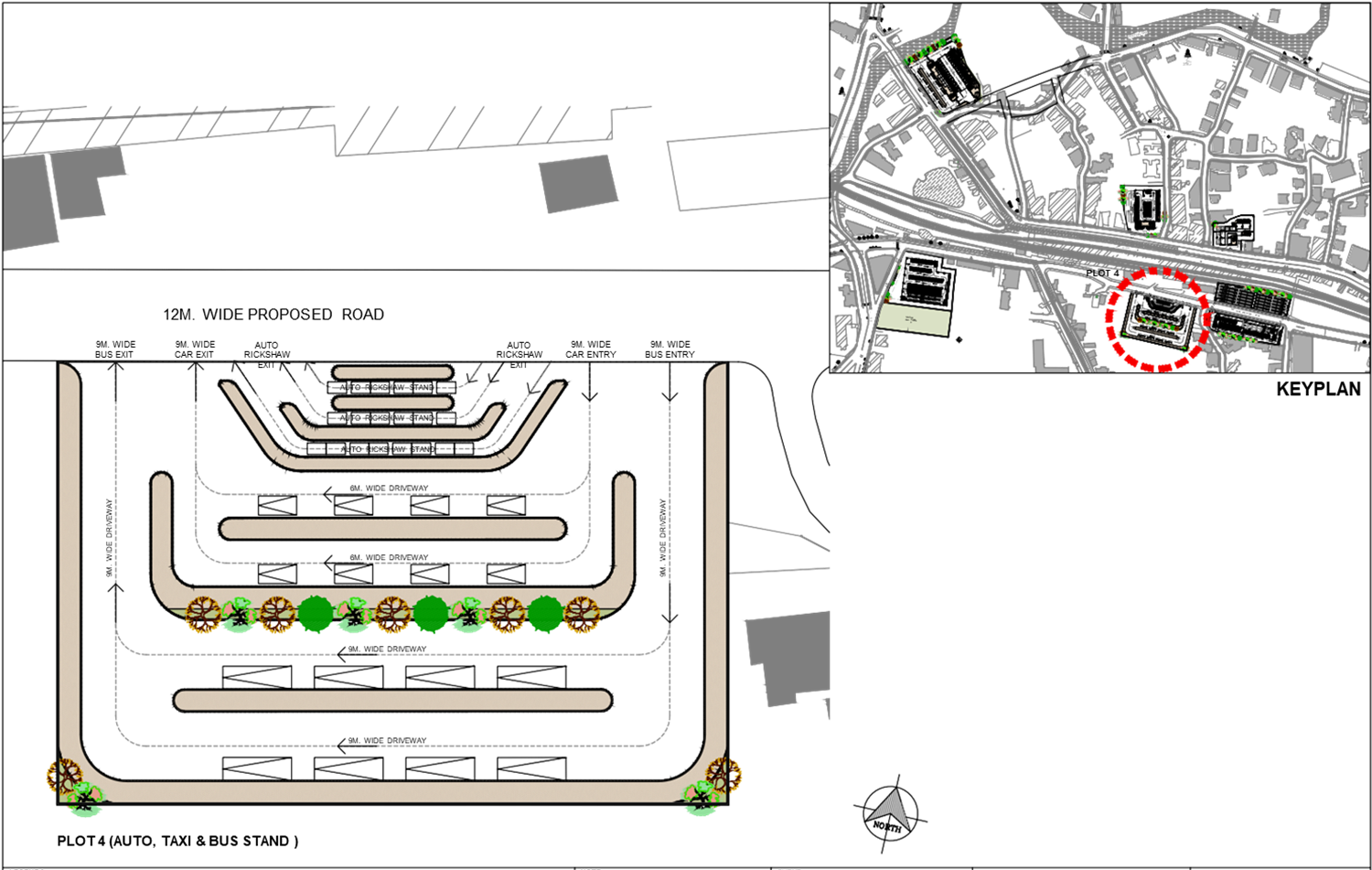

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Plot No.5

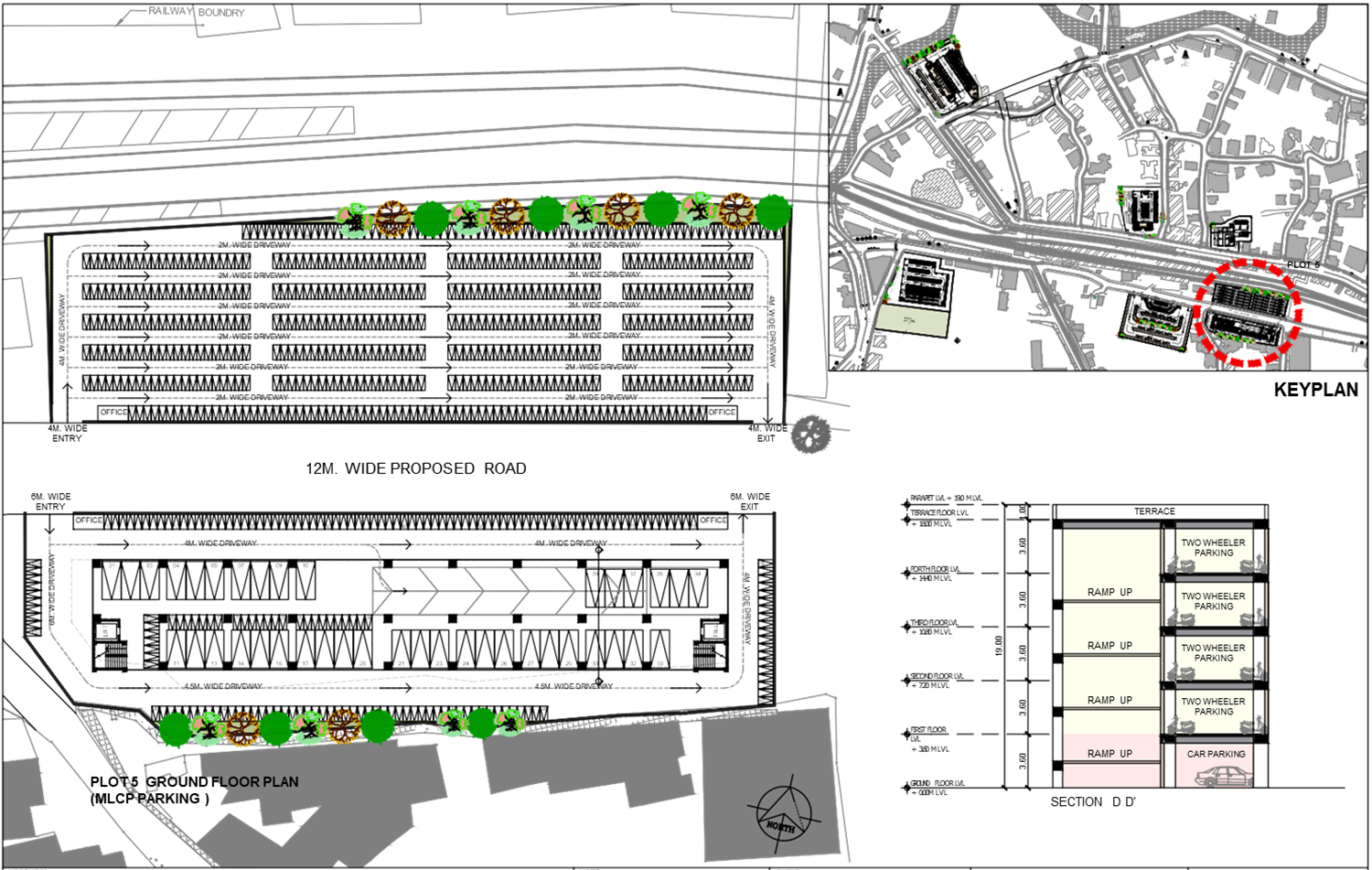

Planning, Design and Project Management Consultancy of Station Area Traffic Improvement Scheme - Badlapur Suburban Station, Mumbai

Plot No.6

Detailed project report for
Direct Pedestrian Subway Connection
between Metro Line 3 Stations
and Adjoining Developments

Detailed project report for Direct Pedestrian Subway Connection between Metro Line 3 Stations and Adjoining Developments

Client - Mumbai Metro Rail Corporation Ltd (MMRCL)

Project Year - Year-2022

Area - Total 8 Subways

Project Cost - Rs. 745 Cr.

Location - Mumbai, Maharashtra

Service Rendered -

Alignment of subways
Architectural and structural design of subways
BIM Modelling of Architecture
Civil and MEP / HVAC services
Detailed cost estimates and tender documents for execution

Status - DPR Submitted

Detailed project report for Direct Pedestrian Subway Connection between Metro Line 3 Stations and Adjoining Developments
